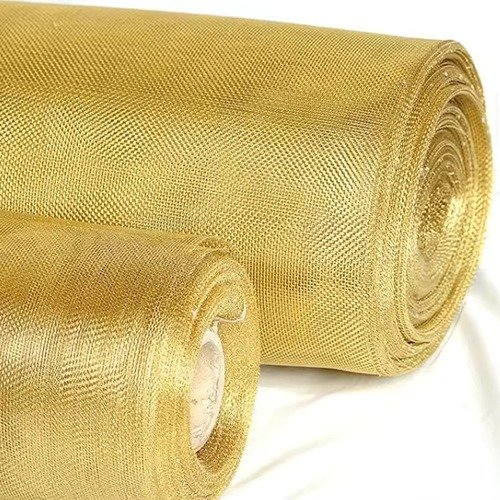

Brass Woven Wire Cloth

Brass Woven Wire Cloth Low brass is the most popular brass alloy for wire cloth screens. With an analysis of 80% copper and 20% zinc, low brass offers good resistance to corrosion like copper although its electrical and thermal conductivity are lower. The tensile property of brass screen is higher than those of copper with some sacrifice in formability.
Our in house brand, trusted since 1960’s for it’s supreme quality and reliability in various industries that require premium quality metal meshes.

Brass resists atmospheric corrosion, water and many salt water solutions. A high percentage of zinc makes it stronger and more durable than copper and bronze.

Bronze is abrasion resistant and is well suited for exposure to most atmospheres. Its high copper content makes it more corrosion resistant than brass. It is also harder and stronger than copper.

Snake® Brand Brass Woven Wire Cloth specifications listed are normally available from stock for prompt delivery.  Many other brass specifications can be produced according to requirements although a substantial minimum order will apply.
Meshes Per Linear Inch Diameter of Brass Wire Width of Opening Kg per Sq Ft Open Area
Inches M.M. Inches M.M.
2 Mesh 0.0630 1.600 0.4370 11.100 0.257 76.40%
2 Mesh 0.0800 2.030 0.4200 10.670 0.416 70.50%
4 Mesh 0.0470 1.190 0.2030 5.160 0.289 65.90%
6 Mesh 0.0350 0.890 0.1310 3.340 0.241 62.40%
8 Mesh 0.0280 0.710 0.0970 2.460 0.206 60.20%
10 Mesh 0.0250 0.640 0.0750 1.910 0.206 56.30%
12 Mesh 0.0230 0.584 0.0600 1.520 0.211 51.80%
14 Mesh 0.0200 0.508 0.0510 1.300 0.186 51.80%
16 Mesh 0.0180 0.457 0.0445 1.130 0.173 50.70%
18 Mesh 0.0170 0.432 0.0386 0.980 0.175 48.20%
20 Mesh 0.0160 0.406 0.0340 0.860 0.172 46.20%
24 Mesh 0.0140 0.356 0.0277 0.700 0.159 44.10%
30 Mesh 0.0130 0.330 0.0203 0.520 0.175 37.20%
40 Mesh 0.0100 0.254 0.0150 0.380 0.138 36.00%
50 Mesh 0.0090 0.229 0.0110 0.280 0.142 30.30%
60 Mesh 0.0075 0.191 0.0092 0.230 0.119 30.20%
80 Mesh 0.0055 0.140 0.0070 0.180 0.085 31.40%
100 Mesh 0.0045 0.114 0.0055 0.140 0.071 30.30%
