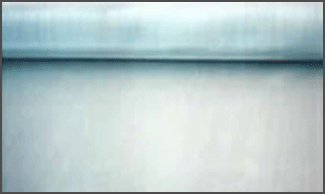

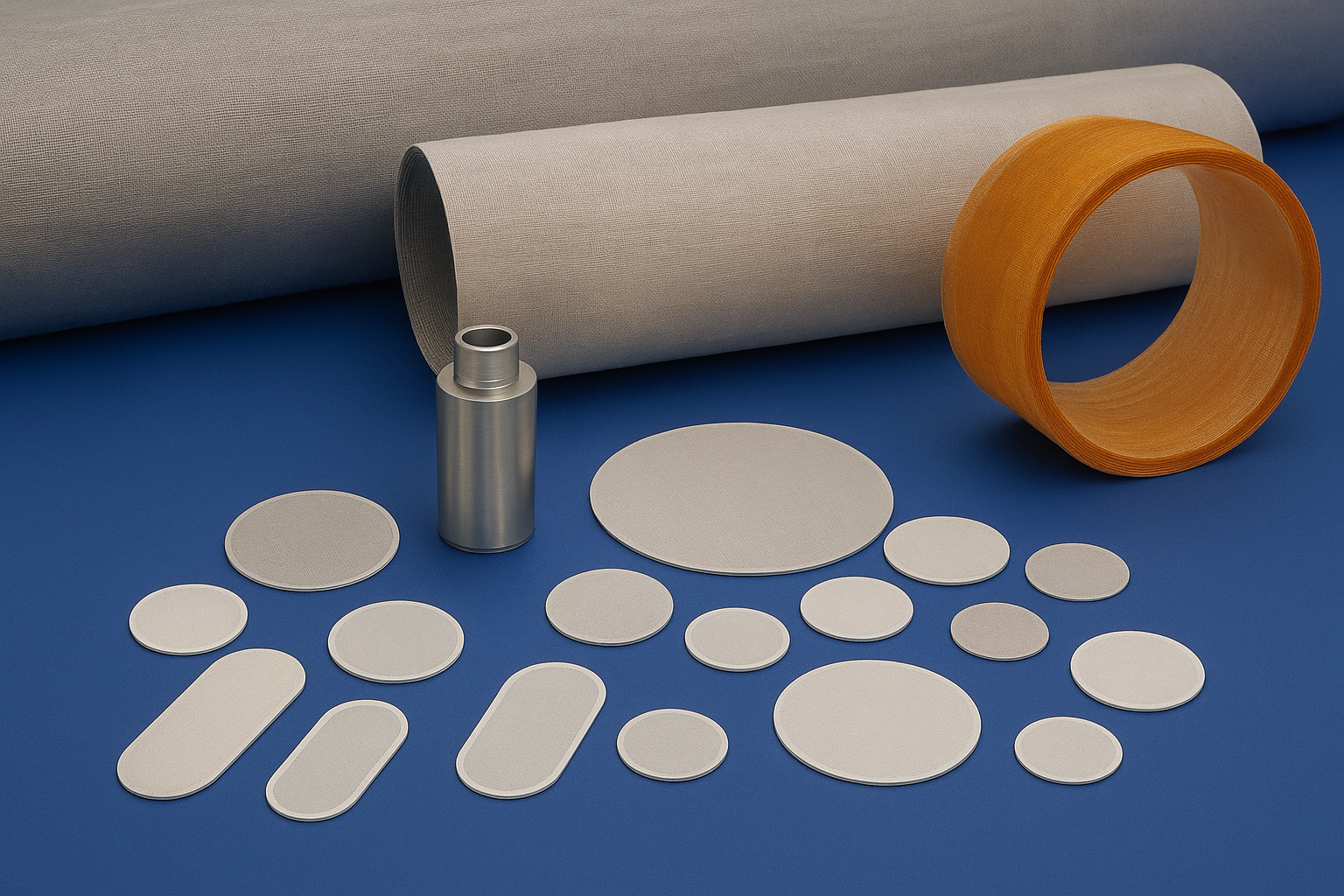

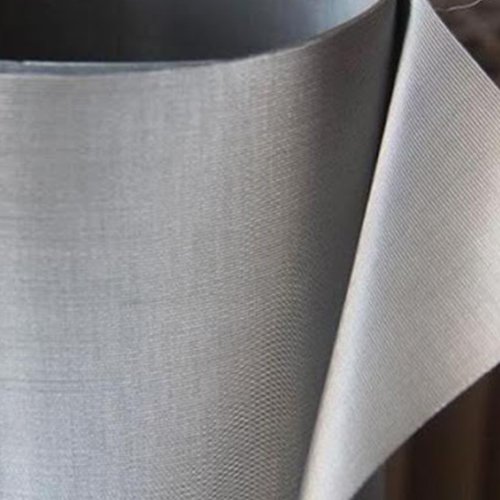

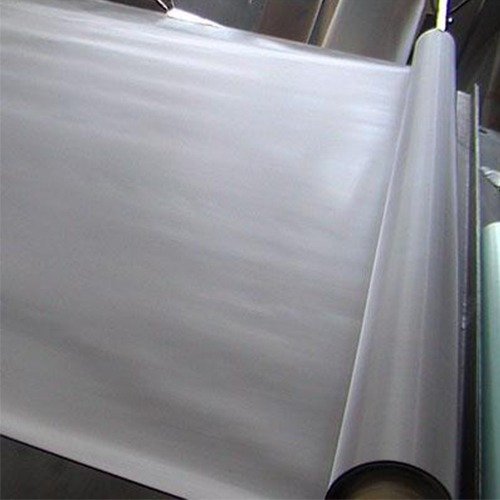

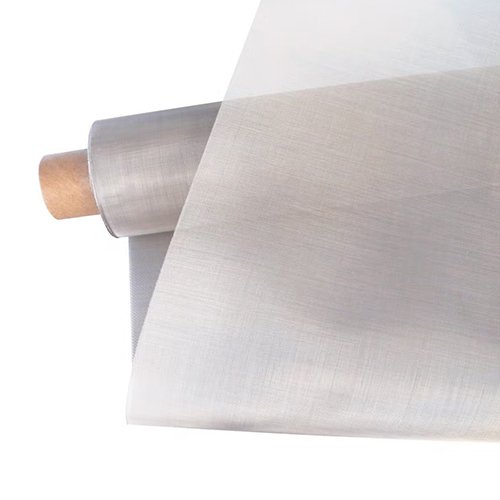

Square Mesh Wire Cloth

Square Mesh Square Mesh
Our in house brand, trusted since 1960’s for it’s supreme quality and reliability in various industries that require premium quality metal meshes.
With over 25 years experience of manufacturing industrial wirecloth, Parsh Nath Manufacturers Pvt. Ltd. have supplied woven wire into an almost every industries and applications. Square Mesh Wire Cloth is our in-house production, marketed under Snake® Brand. (It comes along with a Test Certificate)
Square Mesh

Wirecloth can offerwide ranging characteristics dependent on the configuration of wire thickness in relation to aperture size, as well as type of weave, and can vary in texture from being as fine, soft and flexible as silk to being as rigid as steel plate. Many of the properties of wire cloth are not available using alternative metal media.

We offer the full range of specifications from 2600 Micron aperture down to 1 micron nominal aperture. Manufactured in Mild Steel (M.S.), Galvanized Iron (G.I.), Stainless Steel 304, 316 (S.S.), Aluminum (AL.) and other metals in all possible thickness.

Usage:

  • Filtration and separation equipment
  • Reinforcement and strengthening
  • Ventilation screening
  • Radio and microwave screening
  • Screen printing
  • Transportation belts
  • Speaker grills
  • Plastic extrusion
  • Optical lens manufacture
  • Catalysts
  • Precious metal recovery
  • Flame, heat and light diffusion,
  • Vacuum forming
  • Spark protection
  • Security screens
  • Battery manufacture
  • And many more..



Opening : 1 Micron to 2600 micron
Wire Dia : 50 SWG (0.025 mm) to 24 SWG (0.588 mm)
Width’s : Upto 5 Mtr (16 Ft 4 Inches)
Weaving : Plain Weave Dutch Plain Weave
Patterns : Twill Weave Dutch Twill Weave
Material : Stainless Steel (Grade – 410, 304, 202 etc), Spring Steel - High Carbon Steel, Galvanized Iron (G.I.), Mild Steel (M.S.) Wire, Brass, Copper etc.
Quality : All S.S. Material comes with a Test Report.

SS Grade Specifications:

AISI Grade Stainless Steel Wire Chemical Composition (%)
C Si Mn P S Ni Cr Mo
304 0.08 1 2 0.045 0.03 8.00~10.50 18.00~20.00 -
304H 0.08 1 2 0.045 0.03 8.00~10.50 18.00~20.00 -
304L 0.03 1 2 0.045 0.03 9.00~13.50 18.00~20.00 -
316 0.045 1 2 0.045 0.03 10.00~14.00 10.00~18.00 2.00~3.00
316L 0.03 1 2 0.045 0.03 12.00~15.00 16.00~18.00 2.00~3.00
430 0.12 0.75 1 0.04 0.03 0.6 16.00~18.00 -
430A 0.06 0.5 0.5 0.03 0.5 0.25 14.00~17.00 -
