Parsh Nath Manufacturers Pvt. Ltd.

One of the leading manufacturers of Vibrating Screens, marketed under the trusted SNAKE® Brand since decades. Our screens are built for rugged operating conditions across heavy industries.

SNAKE® Brand

Heavy Duty Wire Mesh Screens are specially manufactured for extremely rugged operating conditions in scalping, sizing or processing heavy abrasive materials such as ores, crushed stones, sand, gravel, metallic and non-metallic minerals, coal slag etc.

These screens are manufactured in Spring Steel, Mild Steel, GI Wires and Stainless Steel to suit particular applications. Screens are woven accurately to any mesh size and of any diameter wire or rod to meet your specific requirements.

Key Features

Heavy Duty Construction Scalping & Sizing Abrasion Resistant Any Mesh Size Available Custom Wire Diameter Multiple Material Options Any Edge Preparation Long Continuous Lengths Precision Woven Industrial Grade

Applications

Ores Crushed Stones Sand & Gravel Metallic Minerals Non-Metallic Minerals Coal Slag Aggregates Mining Industry Quarrying Construction

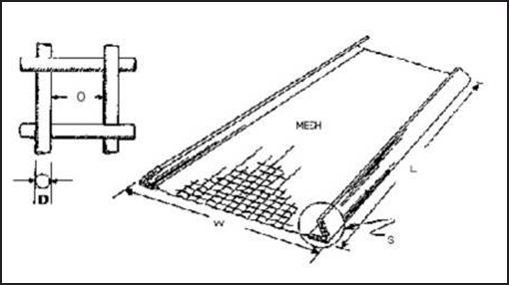

Information Required on Screen Mesh Orders

To ensure we supply the exact screen mesh for your application, please provide the following information when placing an order:

W
Width — Overall (O.A.) outside to outside hooks
L
Length — Length of screen
O
Opening — Space between wires
D
Wire Size — Wire size and type of material
S
Edge Preparation — Type of edge preparation

Technical Specifications

Opening

5 mm to 100 mm

Wire Gauge

1 mm to 10 mm

Widths

1 Feet to 7 Feet

Length

Max. Continuous length of 105 Feet

Material

Stainless Steel (410, 304, 202 etc.), Spring Steel, High Carbon Steel, Galvanized Iron (G.I.), Mild Steel (M.S.), Brass, Copper etc.

Edge Preparation

Custom edge preparations available

Brand

SNAKE® Brand — Parsh Nath Manufacturers Pvt. Ltd.

Our in-house brand SNAKE®, trusted since the 1960s for supreme quality and reliability across industries. Screens are woven accurately to any mesh size and of any diameter wire or rod to meet your specific requirements.

Choosing the Right Vibrating Screen Mesh

A vibrating screen works only as well as the mesh on it. The mesh has to hold its opening while it is shaken all day under heavy, abrasive material, so the material, the wire size and the opening must suit what you are sorting.

For heavy scalping of ore, crushed stone and coal slag, spring steel or another strong steel is the usual choice. Lighter sizing of sand or gravel can be done with mild steel or galvanized wire, and stainless steel helps where the material is wet or corrosive.

Our screens are woven to any mesh size, with openings from 5 mm to 100 mm and wire from 1 mm to 10 mm. They come in widths of 1 to 7 feet and continuous lengths up to 105 feet, with the edge preparation you need. Send us the width, length, opening, wire size and material, and we will quote for the exact screen. For related products, see our crimped wire mesh, industrial heavy screen and spring steel wire mesh pages.

Vibrating Screens FAQs

What are vibrating screens used for?

They are used for scalping, sizing and processing heavy abrasive materials such as ores, crushed stones, sand, gravel, minerals and coal slag, in mining, quarrying and construction.

Which materials are your vibrating screens made from?

They are made in spring steel, mild steel, galvanized iron wire and stainless steel to suit the application. Other materials such as high carbon steel, brass and copper are available on request.
